Ahuja AU-40XT PA Driver Unit (40 Watts, 100V Transformer)
Ahuja AU-40XT PA Driver Unit (40 Watts, 100V Transformer)24
₹2,300.00
₹2,600.00
12% OFF
✓ In Stock (99 available)
Specifications
- SKU Code
- PRD-391A2010
- HSN Code
- 85182900
- Weight
- 2400

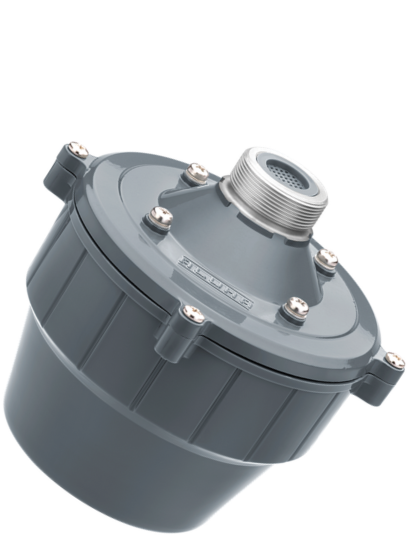

The Ahuja AU-40XT is a premium, high-performance PA Driver Unit designed to deliver exceptionally crisp, loud, and penetrating sound over long distances. Built with a heavy-duty weather-proof die-cast aluminum acoustic flange, this driver unit guarantees reliable operation in challenging outdoor installations. It features a built-in 100V line transformer with multiple power taps that can be easily configured using the rotary switch at the back. It is ideally suited for public address systems, reflex horns, mosques, temples, schools, election rallies, and outdoor announcements.Product Specifications
Input Power: 40W RMS / 60W Max
Power Taps on 100V Line: 40W (250Ω), 30W (330Ω), 20W (500Ω), 10W (1kΩ), 5W (2kΩ)
Frequency Response: 160Hz to 7,000Hz
Sound Pressure Level (SPL at 1kHz): 112.5dB / 1W / 1m
Material: Heavy-duty Die-cast Aluminium Flange
Input Power: 40W RMS / 60W Max
Power Taps on 100V Line: 40W (250Ω), 30W (330Ω), 20W (500Ω), 10W (1kΩ), 5W (2kΩ)
Frequency Response: 160Hz to 7,000Hz
Sound Pressure Level (SPL at 1kHz): 112.5dB / 1W / 1m
Material: Heavy-duty Die-cast Aluminium Flange
Exceptional Power & Clarity: Delivers 40W RMS (60W Max) of clear, powerful audio with an optimized frequency response tailored for voice intelligibility.

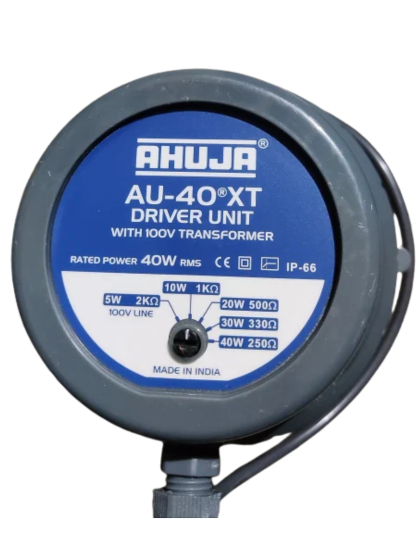

Built-in 100V Transformer: Outfitted with a high-grade line matching transformer with quick rotary switch selection for different power/impedance taps (40W, 30W, 20W, 10W, 5W).
IP66 Weather-Proof Rating: Fully protected against dust ingress and high-pressure water jets when mounted properly on standard reflex horn speakers.
Efficient Heat Dissipation: The voice coils are precision-wound on a rugged aluminum bobbin to ensure high thermal efficiency and prolonged life under continuous heavy usage.
Universal Standard Fitting: Standard throat coupling size (1-3/8” – 18 TPI) ensures perfect compatibility with standard PA reflex horns.
Built-in 100V Transformer: Outfitted with a high-grade line matching transformer with quick rotary switch selection for different power/impedance taps (40W, 30W, 20W, 10W, 5W).
IP66 Weather-Proof Rating: Fully protected against dust ingress and high-pressure water jets when mounted properly on standard reflex horn speakers.
Efficient Heat Dissipation: The voice coils are precision-wound on a rugged aluminum bobbin to ensure high thermal efficiency and prolonged life under continuous heavy usage.
Universal Standard Fitting: Standard throat coupling size (1-3/8” – 18 TPI) ensures perfect compatibility with standard PA reflex horns.
Brand: AHUJA
Product Type: PA Driver Unit / Compression Driver
Color: Industrial Grey
Compatibility: Ideal for use with Ahuja Reflex Horns (like 15", 18", 21" models)
Application Areas: Places of worship, public rallies, factories, security announcements, and railway stations.
Durability Standard: Meets EN 60529 standards for protective enclosures.
Product Type: PA Driver Unit / Compression Driver
Color: Industrial Grey
Compatibility: Ideal for use with Ahuja Reflex Horns (like 15", 18", 21" models)
Application Areas: Places of worship, public rallies, factories, security announcements, and railway stations.
Durability Standard: Meets EN 60529 standards for protective enclosures.
