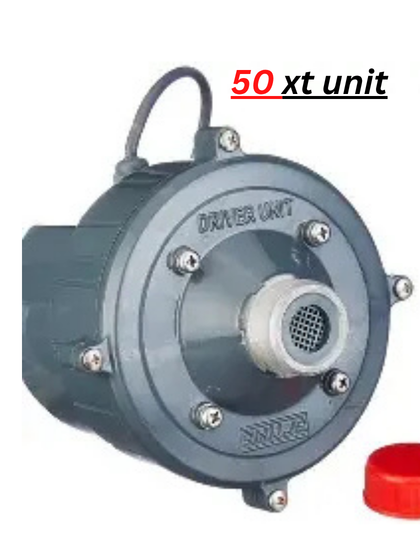

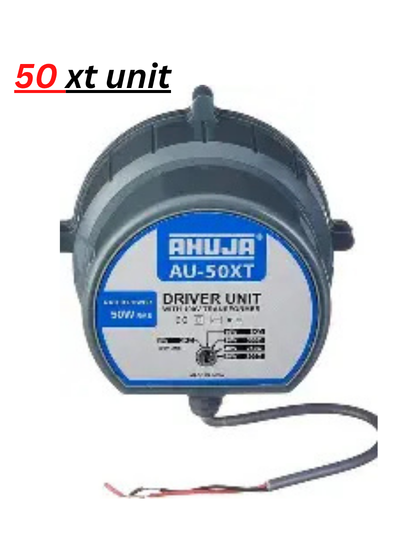

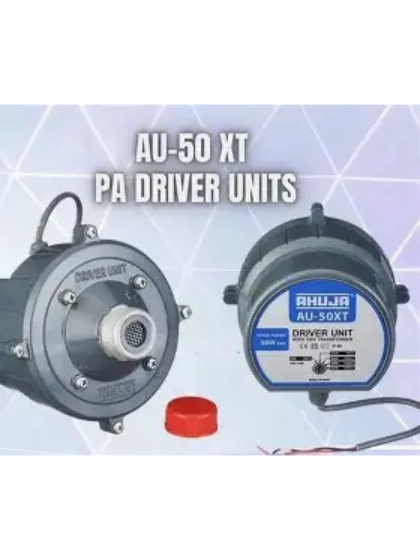

Ahuja AU-50XT PA Driver Unit with Built-in 100V Transformer (50 Watts)
Ahuja AU-50XT PA Driver Unit with Built-in 100V Transformer (50 Watts)
₹2,400.00
₹2,890.00
17% OFF
✓ In Stock (99 available)
Specifications
- SKU Code
- PRD-D8493175
- HSN Code
- 85182900
- Weight
- 2500
The Ahuja AU-50XT is a heavy-duty, high-performance professional PA driver unit engineered to deliver high sound pressure levels and clean voice delivery over long outdoor distances. Featuring a premium die-cast aluminum acoustic head and an integrated protective lower casing with a secure cable gland entry, this unit is completely optimized for reliable, continuous outdoor operation. It comes equipped with a high-grade built-in 100V line matching transformer that provides multiple power taps. It is the perfect choice for high-demand public address installations across places of worship, commercial speaker horns, community setups, and large-scale public installations.
Input Power: 50W RMS / 75W Max
Line Voltage Taps: 100V Line matching system
Frequency Response: 160Hz to 7,000Hz
Sound Pressure Level (SPL at 1kHz): 113dB / 1W / 1m
Material Construction: Heavy-duty Die-cast Aluminum Head with industrial polymer protective lower casing
Connection Interface: Pre-wired heavy-duty connecting cable out via a secure locking gland
Input Power: 50W RMS / 75W Max
Line Voltage Taps: 100V Line matching system
Frequency Response: 160Hz to 7,000Hz
Sound Pressure Level (SPL at 1kHz): 113dB / 1W / 1m
Material Construction: Heavy-duty Die-cast Aluminum Head with industrial polymer protective lower casing
Connection Interface: Pre-wired heavy-duty connecting cable out via a secure locking gland
High-Efficiency 50W Output: Delivers a potent 50W RMS of continuous power and up to 75W Max for high-intelligibility audio performance.
Integrated 100V Line Transformer: Features a built-in line matching transformer with easily selectable power taps to minimize signal loss over long cable lines.
Robust Weatherproof Architecture: Built with an IP66 weather protection rating to effectively block dust ingress and high-pressure water splashes from all directions.
Protected Cable Gland Input: Outfitted with a secure, water-resistant stress-relief cable gland assembly at the base to keep connections airtight and dry.
Excellent Thermal Performance: Precision-wound voice coils on a specialized aluminum bobbin provide efficient heat dissipation, allowing it to function cleanly during prolonged high-power usage.
Universal Coupling Throat: Universal standard thread sizing (1-3/8” – 18 TPI) ensures broad compatibility with standard industrial reflex horns.
Integrated 100V Line Transformer: Features a built-in line matching transformer with easily selectable power taps to minimize signal loss over long cable lines.
Robust Weatherproof Architecture: Built with an IP66 weather protection rating to effectively block dust ingress and high-pressure water splashes from all directions.
Protected Cable Gland Input: Outfitted with a secure, water-resistant stress-relief cable gland assembly at the base to keep connections airtight and dry.
Excellent Thermal Performance: Precision-wound voice coils on a specialized aluminum bobbin provide efficient heat dissipation, allowing it to function cleanly during prolonged high-power usage.
Universal Coupling Throat: Universal standard thread sizing (1-3/8” – 18 TPI) ensures broad compatibility with standard industrial reflex horns.
Brand: AHUJA
Product Type: Compression PA Driver Unit (Wired Transformer Model)
Color Scheme: Classic Industrial Grey
Enclosure Rating: Built in adherence to EN 60529 protection standards.
Recommended Applications: High-volume reflex horns (e.g., Ahuja 15", 18", 21" horn bells) for public plazas, temples, factories, and railway stations.
Product Type: Compression PA Driver Unit (Wired Transformer Model)
Color Scheme: Classic Industrial Grey
Enclosure Rating: Built in adherence to EN 60529 protection standards.
Recommended Applications: High-volume reflex horns (e.g., Ahuja 15", 18", 21" horn bells) for public plazas, temples, factories, and railway stations.
